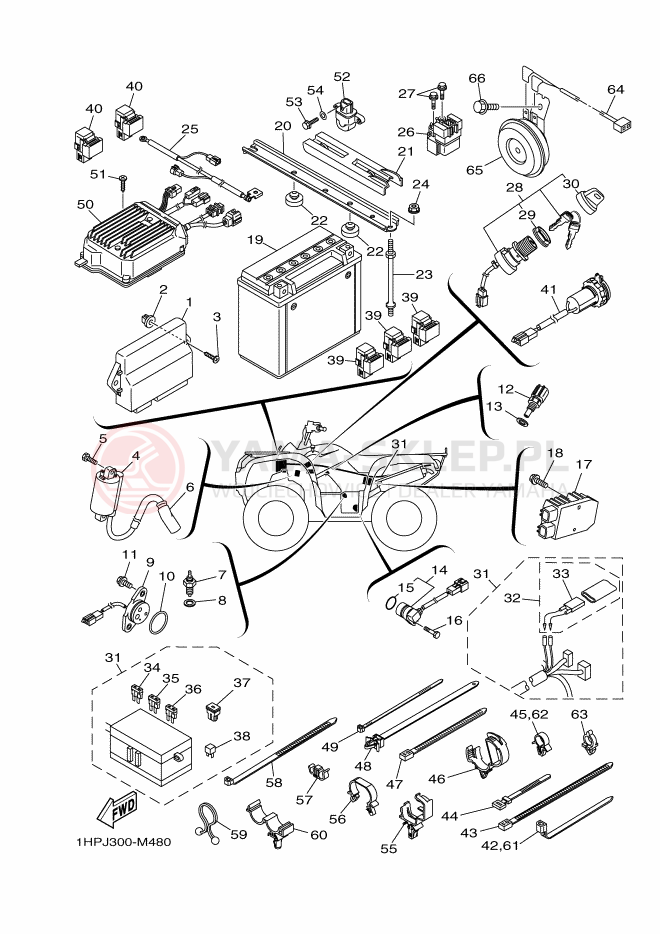

Schemat "układ elektryczny" do Yamaha YFM550FWAD
Wybierz schemat z listy |
poprzedni
| Lp. | nazwa i numer części | cena |
|---|
| Lp. | nazwa i numer części | cena |
|---|---|---|
| 1 |
ENGINE CONTROL UNI 1HS-8591A-00-00 1HS8591A0000 1HS-8591A-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
5530.71 zł
5530.71
|
| 2 |
PLUG,SPEC'L SHAPE 90338-08226-00 903380822600 90338-08226-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (3 szt.) |
9.05 zł
9.05
|
| 3 |
SCREW, TAPPING 97702-60025-00 977026002500 97702-60025-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
3.79 zł
3.79
|
| 4 |
IGNITION COIL ASSY 1D7-82310-01-00 1D7823100100 1D7-82310-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
343.87 zł
343.87
|
| 4 |
IGNITION COIL ASSY 1D7-82310-02-00 => 1D7-82310-04-00 1D7823100200 1D7823100200 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
343.87 zł
343.87
|
| 4 |
IGNITION COIL ASSY 1D7-82310-04-00 1D7823100400 1D7-82310-04-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
343.87 zł
343.87
|
| 5 |
BOLT, HEXAGON 97002-06016-00 970020601600 97002-06016-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
1.53 zł
1.53
|
| 5 |
BOLT, HEXAGON 97D95-06016-00 97D950601600 97D-95060-16-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
1.53 zł
1.53
|
| 5 |
BOLT, HEXAGON 97095-06016-00 => 97D95-06016-00 970950601600 97095-06016-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
1.53 zł
1.53
|
| 6 |
PLUG CAP ASSY 28P-82370-00-00 28P823700000 28P-82370-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
263.22 zł
263.22
|
| 7 |
NEUTRAL SWITCH ASSY 3GB-82540-01-00 3GB825400100 3GB-82540-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
205.45 zł
205.45
|
| 8 |
GASKET 90430-10148-00 904301014800 90430-10148-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
10.05 zł
10.05
|
| 9 |
NEUTRAL SWITCH ASSY 3B4-82540-01-00 3B4825400100 3B4-82540-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
319.97 zł
319.97
|
| 10 |
O-RING 93210-29196-00 932102919600 93210-29196-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (6 szt.) |
16.04 zł
16.04
|
| 11 |
BOLT, WITH WASHER 90119-06137-00 901190613700 90119-06137-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
3.86 zł
3.86
|
| 12 |
THERMOSENSOR ASSY 8CC-85790-01-00 8CC857900100 8CC-85790-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
540.35 zł
540.35
|
| 13 |
GASKET (2GH) 90430-12202-00 904301220200 90430-12202-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (4 szt.) |
9.52 zł
9.52
|
| 14 |
SENSOR, SPEED 3B4-83755-00-00 3B4837550000 3B4-83755-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
963.86 zł
963.86
|
| 15 |
O-RING 4D9-81168-00-00 4D9811680000 4D9-81168-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
34.23 zł
34.23
|
| 16 |
BOLT, HEXAGON SOCKET HEAD 91312-06020-00 913120602000 91312-06020-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
9.98 zł
9.98
|
| 17 |
RECTIFIER & REGULATO 1D7-81960-01-00 1D7819600100 1D7-81960-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
1527.91 zł
1527.91
|
| 18 |
BOLT, FLANGE 95812-06020-00 => 95817-06020-00 958120602000 95812-06020-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
6.46 zł
6.46
|
| 18 |
BOLT, FLANGE 95817-06020-00 958170602000 95817-06020-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
6.46 zł
6.46
|
| 19 |
BATTERY ASSY (YUASA YTX20L-BS) 4SH-82100-22-00 => 4SH-82100-22-10 4SH821002200 4SH-82100-22-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
633.95 zł
633.95
|
| 19 |
BATTERY ASSY (YUASA YTX20L-BS) 4SH-82100-22-10 4SH821002210 4SH-82100-22-10 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
633.95 zł
633.95
|
| 19 |
BATTERY ASSY (YUASA YTX20L-BS) 5FU-H2100-20-00 => 4SH-82100-22-10 5FUH21002000 5FU-H2100-20-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
633.95 zł
633.95
|
| 20 |
BRACKET, BATTERY 1HP-H2128-00-00 1HPH21280000 1HP-H2128-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
88.67 zł
88.67
|
| 21 |
COVER, BATTERY 3B4-82129-00-00 3B4821290000 3B4-82129-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
67.10 zł
67.1
|
| 22 |
PAD,SEAT 22W-24741-00-00 22W247410000 22W-24741-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (8 szt.) |
21.64 zł
21.64
|
| 23 |
SCREW, FITTING 3B4-82133-10-00 3B4821331000 3B4-82133-10-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
187.58 zł
187.58
|
| 24 |
NUT, FLANGE 95780-06500-00 957800650000 95780-06500-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
7.69 zł
7.69
|
| 24 |
NUT, FLANGE 95702-06500-00 => 95780-06500-00 957020650000 95702-06500-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
7.69 zł
7.69
|
| 25 |
WIRE, MINUS LEAD 34D-82116-00-00 => 34D-82116-01-00 34D821160000 34D-82116-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
429.45 zł
429.45
|
| 25 |
WIRE, MINUS LEAD 34D-82116-01-00 34D821160100 34D-82116-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
429.45 zł
429.45
|
| 26 |
STARTER RELAY ASSY (RC19-090A) 3B4-81940-00-00 3B4819400000 3B4-81940-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
402.04 zł
402.04
|
| 27 |
BOLT, FLANGE 95022-06008-00 950220600800 95022-06008-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
2.58 zł
2.58
|
| 28 |
MAIN SWITCH ASSY 28P-82510-00-00 => 28P-82510-01-00 28P825100000 28P-82510-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
363.38 zł
363.38
|
| 28 |
MAIN SWITCH ASSY 28P-82510-01-00 28P825100100 28P-82510-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
363.38 zł
363.38
|
| 29 |
NUT, MAIN SWITCH 3HN-82569-00-00 3HN825690000 3HN-82569-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
23.30 zł
23.3
|
| 30 |
CAP, KEY 3HN-82579-00-00 3HN825790000 3HN-82579-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
60.86 zł
60.86
|
| 31 |
WIRE HARNESS ASSY 1HP-82590-11-00 1HP825901100 1HP-82590-11-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
4323.19 zł
4323.19
|
| 32 |
CIRCUIT BREAKER ASSY 4GB-82180-00-00 4GB821800000 4GB-82180-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
219.89 zł
219.89
|
| 33 |
THERMO SWITCH ASSY 4GB-82560-00-00 4GB825600000 4GB-82560-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
290.74 zł
290.74
|
| 34 |
FUSE (10A) (10A-BL) 67F-82151-40-00 67F821514000 67F-82151-40-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
37.08 zł
37.08
|
| 34 |
FUSE (10A) (10A-BL) 5JJ-82151-30-00 => 67F-82151-40-00 5JJ821513000 5JJ-82151-30-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
37.08 zł
37.08
|
| 35 |
FUSE (20A-BL) (20A-BL) 5JJ-82151-20-00 5JJ821512000 5JJ-82151-20-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
17.86 zł
17.86
|
| 36 |
FUSE - 5 A - BLADE ( (5A-BL) 67F-82151-20-00 67F821512000 67F-82151-20-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
37.08 zł
37.08
|
| 36 |
FUSE - 5 A - BLADE ( (5A-BL) 5JJ-82151-90-00 => 67F-82151-20-00 5JJ821519000 5JJ-82151-90-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
37.08 zł
37.08
|
| 37 |
SLOW BLOW FUSE (40A) JR9-82151-00-00 JR9821510000 JR9-82151-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
27.70 zł
27.7
|
| 37 |
SLOW BLOW FUSE (40A) 5PS-82151-00-00 => JR9-82151-00-00 5PS821510000 5PS-82151-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
27.70 zł
27.7
|
| 38 |
RECTIFIER 2 3WP-81980-00-00 3WP819800000 3WP-81980-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
68.22 zł
68.22
|
| 39 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) 5DM-81950-00-00 => 5DM-81950-01-00 5DM819500000 5DM-81950-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
268.44 zł
268.44
|
| 39 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) 5DM-81950-01-00 5DM819500100 5DM-81950-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
268.44 zł
268.44
|
| 40 |
RELAY ASSY (8FP-01) 8FP-81950-01-00 8FP819500100 8FP-81950-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
74.87 zł
74.87
|
| 41 |
TERMINAL COMP. 1HP-H254B-10-00 1HPH254B1000 1HP-H254B-10-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
172.59 zł
172.59
|
| 42 |
CLAMP 90464-15195-00 904641519500 90464-15195-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
14.29 zł
14.29
|
| 43 |
CLAMP 90464-40825-00 904644082500 90464-40825-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
2.13 zł
2.13
|
| 44 |
BAND,SWITCH CORD 437-83936-01-00 437839360100 437-83936-01-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
24.27 zł
24.27
|
| 45 |
CLAMP 90464-15157-00 904641515700 90464-15157-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
15.94 zł
15.94
|
| 46 |
CLAMP 90464-20181-00 904642018100 90464-20181-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (2 szt.) |
10.68 zł
10.68
|
| 47 |
CLAMP 90464-31827-00 904643182700 90464-31827-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
6.86 zł
6.86
|
| 48 |
CLAMP 90464-10112-00 904641011200 90464-10112-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (4 szt.) |
15.81 zł
15.81
|
| 49 |
CLAMP 1 5Y9-12491-00-00 5Y9124910000 5Y9-12491-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 3-7 dni |
10.68 zł
10.68
|
| 50 |
POWER STRG. CONT. UN 3B4-859A0-10-00 3B4859A01000 3B4-859A0-10-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
11390.11 zł
11390.11
|
| 51 |
SCREW,BIND 98980-06020-00 989800602000 98980-06020-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
21.17 zł
21.17
|
| 51 |
SCREW,BIND 98902-06020-00 => 98980-06020-00 989020602000 98902-06020-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
21.17 zł
21.17
|
| 52 |
LEAN ANGLE SENSOR 3B4-82576-00-00 3B4825760000 3B4-82576-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
349.63 zł
349.63
|
| 53 |
BOLT 97002-05016-00 => 97095-05016-00 970020501600 97002-05016-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 3-7 dni |
9.47 zł
9.47
|
| 53 |
BOLT 97095-05016-00 970950501600 97095-05016-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 3-7 dni |
9.47 zł
9.47
|
| 54 |
WASHER 92990-05600-00 929900560000 92990-05600-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (9 szt.) |
3.53 zł
3.53
|
| 54 |
WASHER 92902-05600-00 => 92990-05600-00 929020560000 92902-05600-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (9 szt.) |
3.53 zł
3.53
|
| 55 |
CLAMP 90464-20237-00 904642023700 90464-20237-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
10.48 zł
10.48
|
| 56 |
CLAMP 90464-24230-00 904642423000 90464-24230-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
22.10 zł
22.1
|
| 57 |
CLAMP 90464-09013-00 904640901300 90464-09013-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
19.04 zł
19.04
|
| 58 |
CLAMP 90464-12045-00 904641204500 90464-12045-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
14.72 zł
14.72
|
| 59 |
CLAMP 90464-14800-00 904641480000 90464-14800-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
3.79 zł
3.79
|
| 60 |
CLAMP 90464-16012-00 904641601200 90464-16012-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
29.51 zł
29.51
|
| 61 |
CLAMP 90464-15195-00 904641519500 90464-15195-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
14.29 zł
14.29
|
| 62 |
CLAMP 90464-15157-00 904641515700 90464-15157-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (1 szt.) |
15.94 zł
15.94
|
| 63 |
CLAMP 90464-10833-00 => 90464-12830-00 904641083300 90464-10833-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
12.12 zł
12.12
|
| 63 |
CLAMP 90464-12830-00 904641283000 90464-12830-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
12.12 zł
12.12
|
| 64 |
WIRE, SUB LEAD 3B4-82309-00-00 3B4823090000 3B4-82309-00-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
77.80 zł
77.8
|
| 65 |
HORN 3B4-83371-00-00 3B4833710000 3B4-83371-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.png |
384.33 zł
384.33
|
| 66 |
BOLT, FLANGE 95812-06012-00 958120601200 958-12060-12-00 https://yama-sklep.pl/image/scheme/24d2b56d46da369d542ff3e5322e128e613148504a3330302d4d343830.pngwysyłamy w 24-48H (2 szt.) |
9.05 zł
9.05
|
