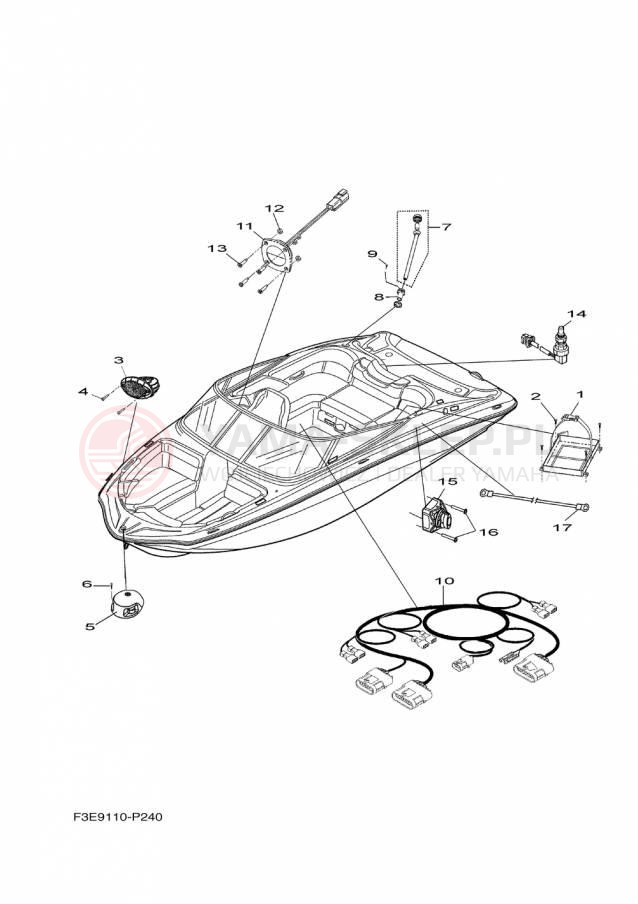

Schemat "układ elektryczny" do Yamaha AR192 RM1800AP/RM1800BP
Wybierz schemat z listy |
poprzedni
| Lp. | nazwa i numer części | cena |
|---|
| Lp. | nazwa i numer części | cena |
|---|---|---|
| 1 |
BATTERY CASE ASSY F2D-U8210-00-00 F2DU82100000 F2D-U8210-00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 2 |
SCREW, #10 X 3/4" 90169-10SA1-00 9016910SA100 90169-10SA1-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 3 |
SINGLE HORN ASSY (ST F3H-U8304-10-00 F3HU83041000 F3H-U8304-10-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 4 |
SCREW, TAPPING 90167-08S16-00 9016708S1600 90167-08S16-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 5 |
BOW LIGHT ASSY. F3H-U8130-00-00 F3HU81300000 F3H-U8130-00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 6 |
SCREW, #8 X 5/8" 90167-08S10-00 9016708S1000 90167-08S10-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 7 |
STERN LIGHT ASSY F0R-U8150-10-00 F0RU81501000 F0R-U8150-10-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 8 |
SOCKET F1C-U8147-10-00 F1CU81471000 F1C-U8147-10-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 9 |
SCREW, #8 X 3/4" 90167-08S12-00 9016708S1200 90167-08S12-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 10 |
WIRE HARNESS 9 F3E-U827L-01-00 F3EU827L0100 F3E-U827L-01-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 11 |
LIGHT, ROOM 1 F3H-U8124-00-00 F3HU81240000 F3H-U8124-00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 12 |
NUT, 8-32 NYLOX 90185-08S00-00 9018508S0000 90185-08S00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 13 |
SCREW 90152-08S08-00 9015208S0800 90152-08S08-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 14 |
SWITCH, ENGINE STOP F1C-6834B-00-00 F1C6834B0000 F1C-6834B-00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 15 |
SWITCH, BATTERY F2G-U8314-00-00 F2GU83140000 F2G-U8314-00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 16 |
SCREW, TAPPING 90167-08SB4-00 9016708SB400 90167-08SB4-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 17 |
WIRE HARNESS 7 F2J-U827J-00-00 F2JU827J0000 F2J-U827J-00-00 https://yama-sklep.pl/image/scheme_us/28e02d16640276c90be95cf489ea59d0333133323536315f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
