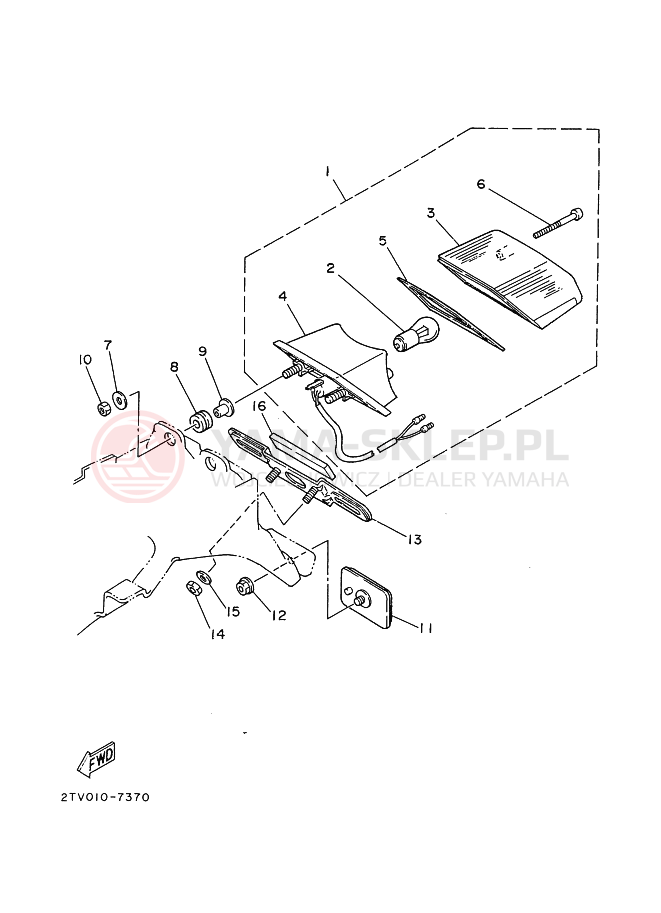

Schemat "Oświetlenie tył" do Yamaha SDR
Wybierz schemat z listy |
poprzedni
| Lp. | nazwa i numer części | cena |
|---|
| Lp. | nazwa i numer części | cena |
|---|---|---|
| 1 |
TAILLIGHT UNIT ASSY 1JK-84710-00-00 1JK847100000 1JK-84710-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
332.81 zł
332.81
|
| 2 |
.BULB (12V-21/5W) 31L-84714-00-00 31L847140000 31L-84714-00-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (3 szt.) |
4.43 zł
4.43
|
| 3 |
.LENS, TAILLIGHT 34Y-84721-E0-00 34Y84721E000 34Y-84721-E0 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
115.29 zł
115.29
|
| 4 |
.BASE ASSY 1JK-84720-00-00 1JK847200000 1JK-84720-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
192.97 zł
192.97
|
| 5 |
SEAL 1VJ-14462-00-00 1VJ144620000 1VJ-14462-00-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (4 szt.) |
26.94 zł
26.94
|
| 5 |
SEAL 34Y-84723-E0-00 => 1VJ-14462-00-00 34Y84723E000 34Y-84723-E0 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (4 szt.) |
26.94 zł
26.94
|
| 6 |
.SCREW, TAPPING 97706-40630-00 977064063000 97706-40630 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
8.65 zł
8.65
|
| 7 |
WASHER,PLATE 90201-06067-00 => 90201-06380-00 902010606700 90201-06067 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (1 szt.) |
8.65 zł
8.65
|
| 8 |
GROMMET 90480-14023-00 904801402300 90480-14023-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (ponad 10 szt.) |
17.50 zł
17.5
|
| 9 |
COLLAR 90387-06388-00 => 90387-06158-00 903870638800 90387-06388-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
25.58 zł
25.58
|
| 10 |
NUT 95303-06600-00 => 95380-06600-00 953030660000 95303-06600 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (2 szt.) |
14.80 zł
14.8
|
| 11 |
REAR REFLECTOR ASY 3G1-85130-01-00 => 4KM-85130-00-00 3G1851300100 3G1-85130-01 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
158.49 zł
158.49
|
| 12 |
NUT, FLANGE 3GM (BLA 95706-05500-00 => 95707-05500-00 957060550000 95706-05500 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (ponad 10 szt.) |
7.11 zł
7.11
|
| 12 |
NUT, FLANGE 3GM (BLA 95707-05500-00 957070550000 95707-05500-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (ponad 10 szt.) |
7.11 zł
7.11
|
| 13 |
BRACKET, LICENSE 1KH-84751-00-90 1KH847510090 1KH-84751-00-90 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
132.41 zł
132.41
|
| 14 |
NUT 95303-06600-00 => 95380-06600-00 953030660000 95303-06600 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (2 szt.) |
14.80 zł
14.8
|
| 15 |
WASHER,PLATE 90201-06067-00 => 90201-06380-00 902010606700 90201-06067 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 24-48H (1 szt.) |
8.65 zł
8.65
|
| 16 |
DAMPER 2 34M-21639-00-00 34M216390000 34M-21639-00-00 https://yama-sklep.pl/image/scheme/2242afb086fd0cb951074834aab13e743254563031302d37333730.pngwysyłamy w 3-7 dni |
12.76 zł
12.76
|
