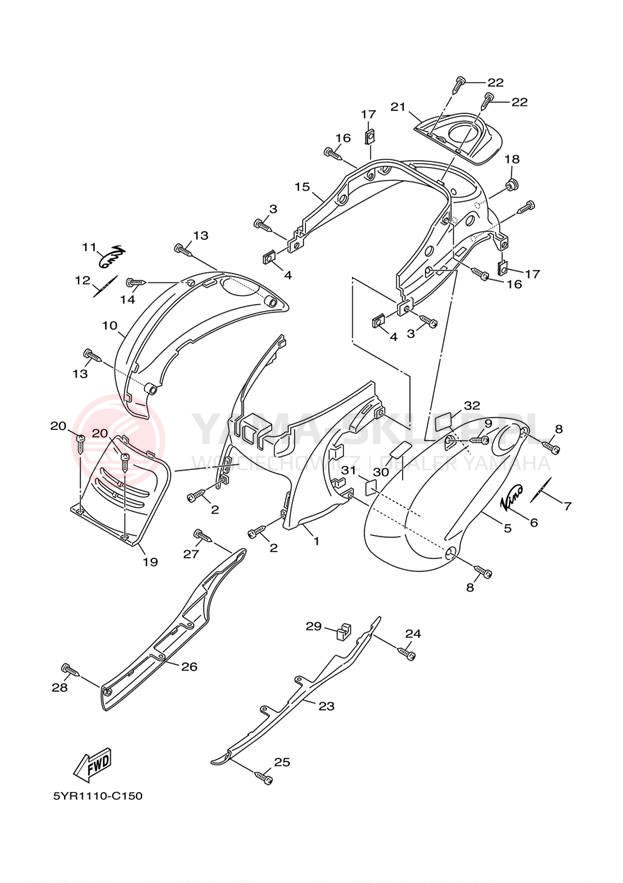

Schemat "Pokrywa boczna" do Yamaha VINO 125 YJ125W
Wybierz schemat z listy |
poprzedni
| Lp. | nazwa i numer części | cena |
|---|
| Lp. | nazwa i numer części | cena |
|---|---|---|
| 1 |
COVER, SIDE 1 YB 5JS-F1711-00-33 5JSF17110033 5JS-F1711-00-33 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 2 |
SCREW, TRUSS 97707-50012-00 977075001200 97707-50012-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
3.65 zł 3.29 złnajniższa cena: 3.29 zł
3.29
|
| 3 |
SCREW, TAPPING 97707-50016-00 => 90167-05077-00 977075001600 97707-50016-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 24-48H (ponad 10 szt.) |
3.65 zł 3.29 złnajniższa cena: 3.29 zł
3.29
|
| 3 |
SCREW, TAPPING 90167-05077-00 901670507700 90167-05077-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 24-48H (ponad 10 szt.) |
3.65 zł 3.29 złnajniższa cena: 3.29 zł
3.29
|
| 4 |
NUT,SPRING 90183-05042-00 901830504200 90183-05042-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 24-48H (ponad 10 szt.) |
3.65 zł 3.29 złnajniższa cena: 3.29 zł
3.29
|
| 5 |
COVER, SIDE 2 UR DPBMC 5JS-XF172-01-P7 5JSXF17201P7 5JS-XF172-01-P7 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 5 |
COVER, SIDE 2 UR FOR LNMK 5JS-X2172-01-P8 5JSX217201P8 5JS-X2172-01-P8 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 6 |
EMBLEM 5YR-F173B-00-00 5YRF173B0000 5YR-F173B-00-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 7 |
EMBLEM 1 5YR-F1781-00-00 5YRF17810000 5YR-F1781-00-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 8 |
SCREW,TAPPING 97780-50012-00 => 97780-50612-00 977805001200 97780-50012-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
8.65 zł 7.79 złnajniższa cena: 7.79 zł
7.79
|
| 9 |
SCREW, TAPPING 97780-50016-00 977805001600 97780-50016-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 24-48H (2 szt.) |
2.20 zł 1.98 złnajniższa cena: 1.98 zł
1.98
|
| 10 |
COVER, SIDE 3 DPBMC 5JS-X2173-00-P7 5JSX217300P7 5JS-X2173-00-P7 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 10 |
COVER, SIDE 3 LNMK 5JS-X2173-00-P8 5JSX217300P8 5JS-X2173-00-P8 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 11 |
EMBLEM 5YR-F174B-00-00 5YRF174B0000 5YR-F174B-00-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 15 |
COVER, SIDE 4 YB 5JS-F1741-00-33 5JSF17410033 5JS-F1741-00-33 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 18 |
COLLAR 90387-068S1-00 90387068S100 90387-068S1-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
12.07 zł 10.86 złnajniższa cena: 10.86 zł
10.86
|
| 19 |
COVER, SIDE 5 YB 5JS-F171E-40-0X 5JSF171E400X 5JS-F171E-40-0X https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 21 |
COVER, SIDE 6 5JS-F171X-00-00 5JSF171X0000 5JS-F171X-00-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 23 |
MOLE, SIDE COVER 1 UR FOR LNMK 5JS-F171L-01-PA 5JSF171L01PA 5JS-F171L-01-PA https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 23 |
MOLE, SIDE COVER 1 UR DPBMC 5JS-F171L-01-P9 5JSF171L01P9 5JS-F171L-01-P9 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 26 |
MOLE, SIDE COVER 2 UR FOR LNMK 5JS-F171M-00-PA 5JSF171M00PA 5JS-F171M-00-PA https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 26 |
MOLE, SIDE COVER 2 UR DPBMC 5JS-F171M-00-P9 5JSF171M00P9 5JS-F171M-00-P9 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 29 |
DAMPER 5JS-F1747-00-00 5JSF17470000 5JS-F1747-00-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 30 |
LABEL, CAUTION 4JK-F8446-01-00 4JKF84460100 4JK-F8446-01-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 31 |
PLATE, ROUTING 2 5YR-F1686-00-00 5YRF16860000 5YR-F1686-00-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
| 32 |
PLATE, EPA 2(CALIF (CALIFORNIA) 5YR-F179N-20-00 5YRF179N2000 5YR-F179N-20-00 https://yama-sklep.pl/image/scheme_us/26c1125c8e2dc31f56c5466b6fc6fe3a9e38383431395f696d672e6a7067.jpgwysyłamy w 3-7 dni |
|
